| Optical Distribution Frame |
|

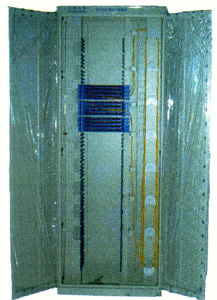

1）GPX432S Optical Distribution Frame
GPX432S Optical distribution frame is to connect the outside cable and optical communication equipment, can make a fix and reliable grounding of the cable on the device, the cable termination, transfer line, and protection for the line core of the fiber optic cable and pigtail.
Feature and function：
Composed of rack and 12-core integration tray, no chassis.
Cabinet and door are made of high quality cold rolled steel, electrostatic powder coating process.
Under-side of the cable way to shorten the length of the stripping to facilitate the better protection of the pigtail cable. Use hose clamps to fix the stripping fiber optic cable to the rack left door, strengthening core and metal armor layer reliable grounding by confluence of ground components, provide a centralized cable District where 50 fiber optic cable can be installed, taking up four tray space.
Provide direct penetration welding tray welding crossing fiber optic cable, each tray welding 12-core ribbon. |
 |

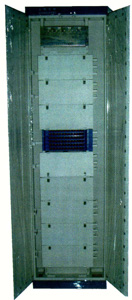

2) GPX432SS Optical Distribution Frame
GPX432SS Optical distribution frame is to connect the outside cable and optical communication equipment, can make a fix and reliable grounding of the cable on the device, the cable termination, transfer line, and protection for the line core of the fiber optic cable and pigtail.
Feature and function：
Optical distribution frame is composed of frame and 12-core integration tray, 72-core terminal is a unit;
Cabinet body and door are made of high quality cold rolled steel, electrostatic powder coating process;
Realization of the construction, operation, maintenance of all front wall or back to back installation, convenient device to reduce the engine room area;
achieve the way of up into the cable or down into the cable, for outer cable making a centralized stripping, fixed focus, take the cable routing clear;
integration tray through optimized design, operation and maintenance is more reasonable;
Frame with deposit and fiber chassis, dimensions equal to the installation size of Group 1 (72 core) tray, location is interchangeable, easy to free combination. |
 |

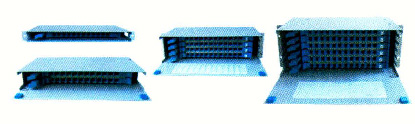

3) GPX432-ODU Optical Fiber Distribution Box is standard sizes custom made and can be installed in fiber optic patch panels, have 12,24,36,48,72 core and other kinds of specifications. Effective completion of the splice and jumper functions.
Application:
Installed within fiber distribution frame.
Features:
Electrolysis board box, the overall electrostatic spray, stylish appearance;
Positive feed cable, the whole front of the operation;
Flexible installation, installation can be against the wall or back to back;
Small room occupation, and improve the engine room utilization;
Modular structure, adjustable welding, wiring, modular;
Install the FC, SC, LC model adapter, the adapter and the front of the chassis was a 30 ° angle; applies to both the ribbon cable and ribbon cable;
Reliable fiber optic cable stripping, protection, grounding device;
Ensure that the optical fiber, cable bending radius of curvature at any location greater than 40mm;
Cable fixing unit built-in cable fixing grounding device, applies to both the ribbon and non-ribbon cable, fiber optic cable can be motivated line or next line. |
 | |
| |
|
|
|
|
