Special Aerial Conductor Series |
|
Special Aerial Conductor Series:
1)Carbon Fiber Composite Reinforced Soft Aluminum Conductor, Shaped Conductor Concentric Stranded Description :It is suitable for high temperature. It can run effectively in high temperature. Its transport current is twice as the conventional Steel Reinforced Aluminum Conductor. It is the best conductor to solve the sag problem as present. Its high tensile strength and low sag can reduce tower number by more than 20%, reduce the project cost and investment, and resist environmental degradation.
![](/FcEditor/UploadFile/201239162852681.jpg)
2)Ultra High Strength Steel Reinforced Soft Aluminum Conductor, Shaped Conductor Concentric Stranded Description Its normal operating temperature can up to 160℃. It can increase carrying capacity by nearly 1 time, but its sag is not significantly increased. It is suitable for lines need conversion to increase capacity. The soft aluminum wire will be in a relaxed state that the full mechanical load is borne by the steel core during operation above the stress transfer temperature.
![](/FcEditor/UploadFile/201239162939447.jpg)
3)Aluminum-clad Invar Steel Reinforced Ultra-resistant Aluminum Alloy Conductor Description It can be used in lines with large span or requiring increasing capacity. Its carrying capacity can reach twice as the same standard steel reinforced aluminum conductor.
![](/FcEditor/UploadFile/201239163027854.jpg)
4)Expanded Diameter Conductor Description It can be used for special high-voltage transmission lines with large power transmission, less line loss and reducing line corridor. It can improve the current transmission capacity in Ultra High Voltage DC. It can be used to substantially reduce the use of conductive aluminum and reduce the project cost. It can increase great economic and social benefits in the long run.
![](/FcEditor/UploadFile/201239163159938.jpg) |
![](/FcEditor/UploadFile/20123916328460.jpg) |
![](/FcEditor/UploadFile/201239163242436.jpg) |
Middle-drawn round wire supporting expanded diameter conductor |
Hollow expanded diameter conductor |
Non-metallic supporting expanded diameter conductor |
5)Gap-type Conductor Description Its operating temperature is up to 150℃. Its carrying capacity is about 1.5 times as general aerial conductor. It has damping performance.
![](/FcEditor/UploadFile/201239163357973.jpg)

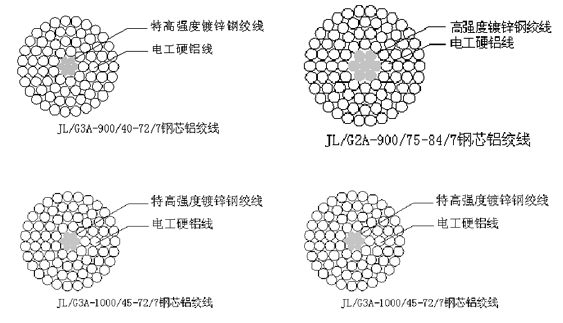

6)Large-section Conductor Description It can be used for special high-voltage transmission lines with large transmission power, less line loss and reducing line corridor. It can improve the current transmission capacity in UHV DC. It can be used to significantly reduce the circuit power loss.
![](/FcEditor/UploadFile/201239163534579.gif) |
|
|
|
|
